PCB Rax – A modular system for holding circuit boards.

The PCB Rax is an easy to use, versatile printed circuit board holder for repair, prototyping , and assembly that can hold nearly any shape of circuit board.

PCB Rax 01

Buy Now!


 Hold on Tight

Not all circuit boards are rectangular. PCB Rax was designed to hold all kinds of different shaped circuit boards, from circles to christmas trees, and everything in-between. PCB Rax comes standard with 10″ connecting rods that can hold rectangular boards up to 9-1/4″ x 8″, and odd shaped boards up to 6-1/2″ x 8″. For larger projects the connecting rods can be replaced.

4" Christmas Tree Project

4″ Christmas Tree Project

2-1/4" Round LED Project

2-1/4″ Round LED Project

2-1/4" x 1-1/2" Electronic Cricket Project

2″ x 1-1/2″ Electronic Cricket Project

Firewire PCI Board

Firewire PCI Board

2" x 4-1/2" Traffic Light Project

2″ x 4-1/2″ Traffic Light Project

8" Christmas Tree Project

8″ Christmas Tree Project

PCB Rax_Large_Board

4″ x 6″ Microcontroller Project


Move it Around

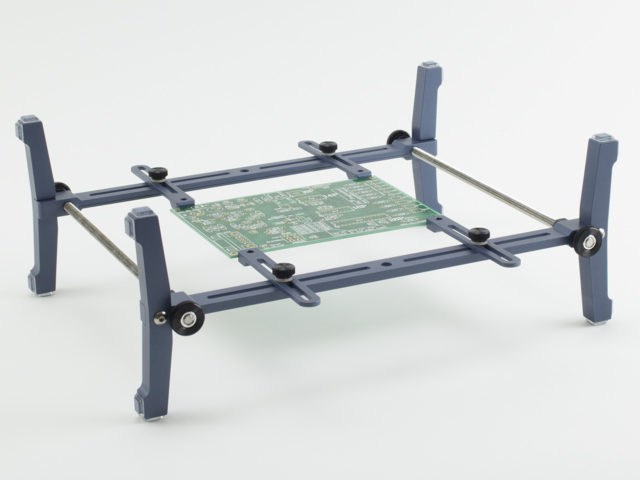

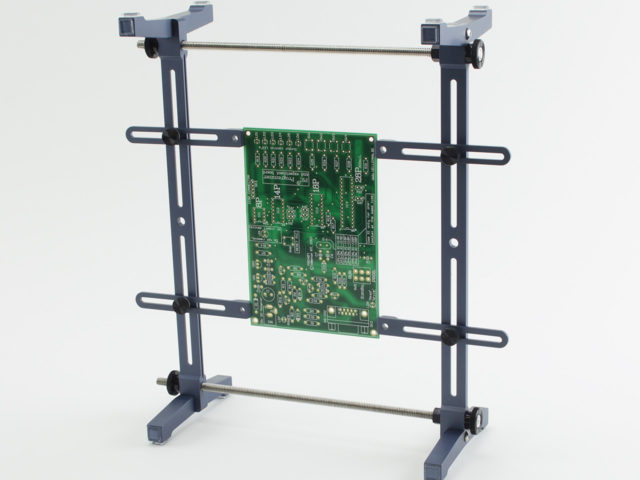

Position the work where you want it to be. Unlike a vise, you can move it to where you need it. You can flip it on its side to access  both sides of the board, and flip it upside down to solder. It is even portable, take it to the project.

PCB Rax_Bench_25
PCB Rax_Bench_04
PCB Rax_Bench_20

PCB Rax_Bench_18
PCB Rax_Bench_11
PCB Rax_Bench_09


Features

The PCB Rax is packed with features that make it easy to work on your projects.

PCB Rax_Rail_Detail

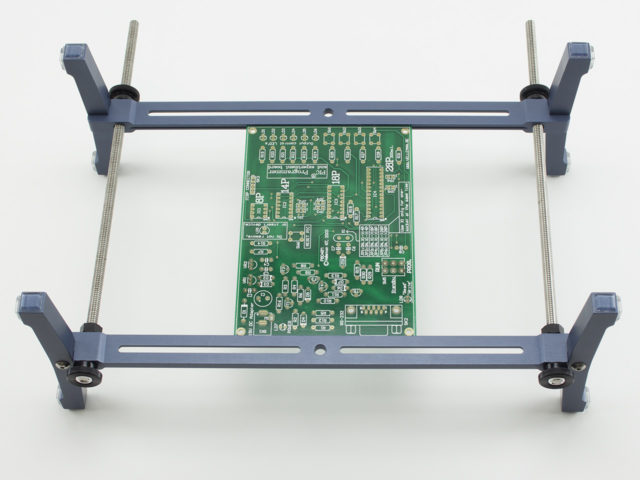

The PCB Rax rails include a slot for holding rectangular circuit boards without needing the extension brackets. They also have accessory slots that hold all of our accessories.

PCB Rax_Connecting Rod

The connecting rods are tightened with a set of thumb nuts (no tools needed) this makes it easy to set the correct pressure to hold the circuit board. If you need to hold larger circuit boards, the connecting rods can be replaced with inexpensive 1/4″-20 threaded rod available at most hardware stores.

PCB Rax_PCB_Bracket

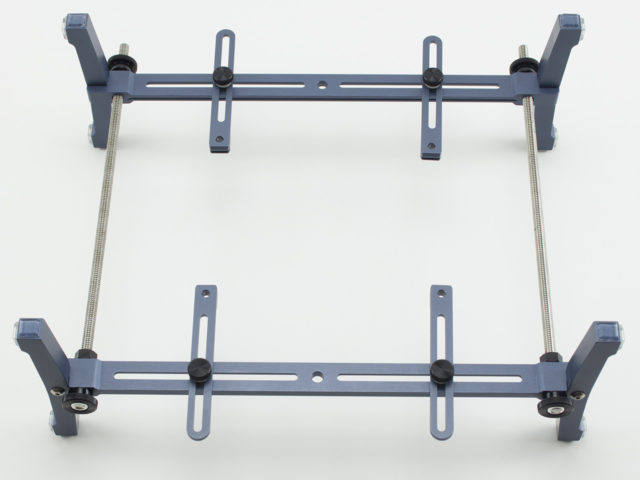

Extension Brackets hold odd shaped boards, or boards with tight clearance. They tighten with thumbs screws in just a few seconds. We include four extension brackets.


What’s in the Box

The PCB Rax ships with the following:

• Two PCB Rax rails with Legs made from aircraft grade anodized aluminum
• Two 1/4″-20 x 10″ connecting rods and hardware
• Four PCB extension brackets with hardware – made from aircraft grade anodized aluminum
• Directions for assembly

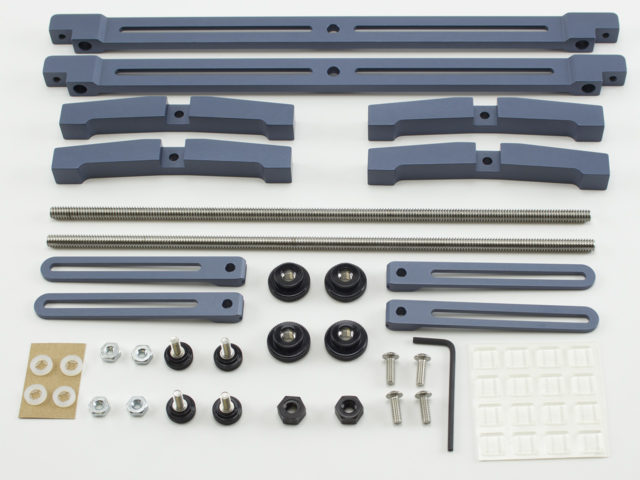

PCB Rax shown as shipped (Assembly required)

PCB Rax shown as shipped (Assembly required)

Buy Now!



Accessories for the PCB Rax

We have created several accessories that extend the capabilities of the PCB Rax.

PCB Bracket Kit

PCB Bracket Kit

Center Rail Kit

Center Rail Kit

Alligator Clip Kit

Alligator Clip Kit

3rd Hands Kit

3rd Hands Kit
